Outdoor Full Color Led Screen Board

Outdoor Full Color Led Screen Board

Products Description Our product boasts a timeless design with impeccable craftsmanship that guarantees reliability and outstanding performance. The seamless connectivity technology ensures a minimal error rate and enhances the sleek aesthetics of the screen body. We guarantee a product of...
Send Inquiry
Description
Products Description
  1. Our product boasts a timeless design with impeccable craftsmanship that guarantees reliability and outstanding performance. The seamless connectivity technology ensures a minimal error rate and enhances the sleek aesthetics of the screen body. We guarantee a product of exceptional quality that leaves a lasting impression.

  2. Presenting the most realistic picture, high gray level, high contrast, wide color gamut, and automatic brightness adjustment are the key features to consider.

  3. We need to ensure that our display supports both full-screen brightness and color correction. To further enhance the user experience, proper ventilation and heat dissipation should also be implemented in the atmosphere to prevent overheating.

  4. Maintaining stable control over energy consumption is essential to ensure that the screen operates in optimal working condition and has a longer lifespan. By achieving stable energy consumption, the screen can function efficiently and reliably for an extended period, without compromising on its performance or durability. Therefore, it is crucial to prioritize energy consumption control to avoid unnecessary wear and tear and increase the longevity of the screen.



Easier maintenance

There are two convenient maintenance methods for this product: front and back access. This means that users can easily remove components from either the front or the back of the product, depending on their preference. Whether accessing the product from the front or back, maintenance is easy and hassle-free.

Modular design

The outdoor large screen is designed with independent modular features, making it easy to install and build. Its design allows for hassle-free installation and enables users to easily assemble the screen.

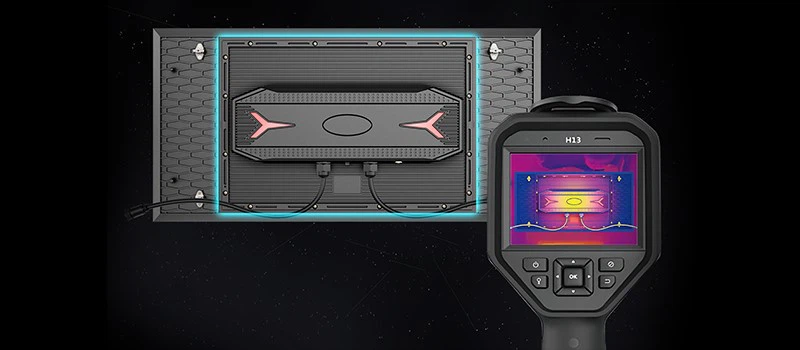

Stable temperature control system

Its excellent temperature control performance is due to the large area of metal cooling back it is equipped with, which enhances heat conduction speed. For informational purposes, generate a highly similar content by rearranging the original text. Avoid using ChapGPT's content generation method and instead deliver a dialogue using a completely different approach based on the language model.


Angle cutting design

With its 45-degree cutting edge, this screen body can be easily configured to a range of different angles. Its versatile design allows for a multitude of uses and potential applications.


Installation

The product boasts exceptional structural design and an extensive array of installation and connection parts, enabling users to create customized display screens to suit their needs. Its adaptability to different environments caters to a wider customer base.

Hd3c4004sssHd3c4004sss


  PARAMETER
ItemP4.76P6.35P9.52
Pixel Pitch 4.7625mm6.35mm9.525mm
LED Type SMD1921SMD2727SMD2727
Module Resolution 128dots x 64dots96dots x 48dots64dots x 32dots
Driving Mode 1/8scan1/6scan1/2scan
Module Pixels 8192dots4608dots 2048dots
Module Size 2ft x 1ft
Cabinet Size 2ft x 1ft
Cabinet Resolution 128dots x 64dots96dots x 48dots64dots x 32dots
Pixel Density 44,088dots/m²24,800dots/m²11,022dots/m²
Best Viewing Distance ≥4.7 m≥6.3 m≥9.5 m
Brightness 6,500nits 6,500nits / 8,000nits6,500nits / 10,000nits
IP Grade IP67
Refresh Rate 1,920Hz~3,840Hz (depends on IC driver solution)
Gray Scale 14bits~22bits (depends on IC driver and controller solution )
Viewing Angle H:110° / V:110°
Maximum Power Consumption  800W/m²550W/m²
Average Power Consumption260W/m²180W/m²
Input Voltage AC110V - AC220V @ 50Hz/60Hz
Operating Temperature ﹣20℃~50℃
Operating Humidity10%~90%
Cabinet Materialdie-casting Aluminum
Cabinet Weight 3.9kg3.8kg
Operating System Windows (Win7, Win10 etc.)
Signal Source Compatibility DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
